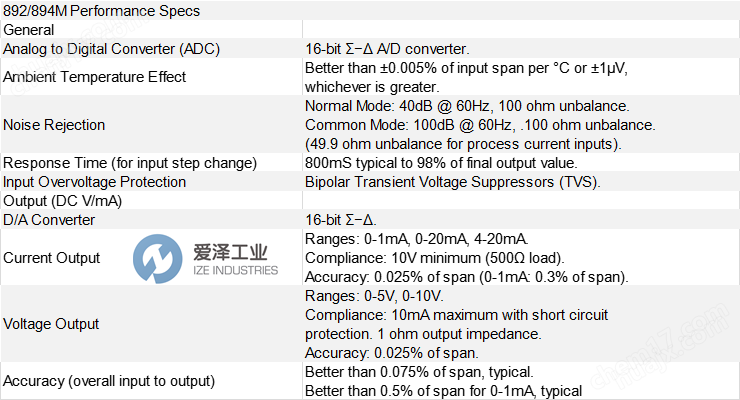

ACROMAG模塊892M-0500技術參數

ACROMAG模塊892M系列介紹

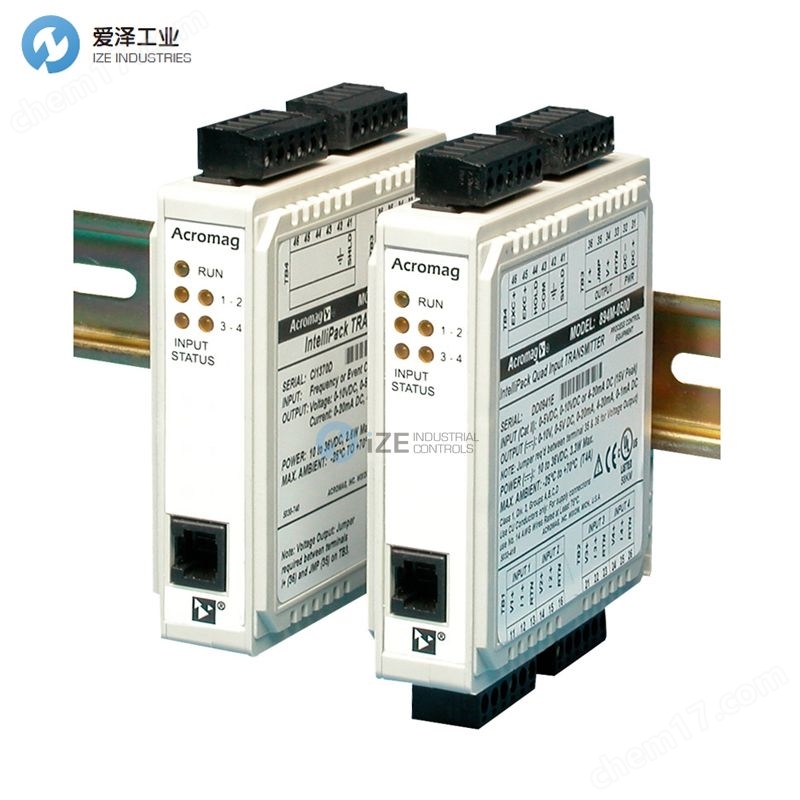

892M, 894M：直流電壓/電流輸出數學模塊

產品簡短描述：

2或4輸入通道，0至20mA直流，0至10V直流（可選范圍）

0至20mA直流，0至10V直流（可選范圍）輸出

10-36V直流電源

軟件配置，執行算術運算，評估條件和布爾參數，執行保持功能

892M, 894M 具有直流電壓/電流輸出的數學模塊說明：

IntelliPack數學模塊執行復雜的數學計算，并將直流輸入信號轉換為縮放的直流或頻率輸出。它們是將模擬信號作為電壓、電流或脈沖輸入隔離和接口到PLC或控制器的理想選擇。

典型應用包括計算和、差、平均值、流量、體積、重量、功率和其他縮放或計算變量。

數學模塊提供直流電壓/電流輸出或頻率/脈寬調制輸出。每個輸出（直流、頻率和繼電器通道）由用戶定義的方程控制。

數學/計算方程可以用IntelliPack配置軟件以自由格式輸入，類似于大多數流行的電子表格程序。模擬器屏幕提供即時反饋，以測試方程并在實際安裝前查看輸出響應。

892M, 894M 具有直流電壓/電流輸出的數學模塊特色和優勢：

通用直流模擬輸入/輸出范圍為改變的應用需求提供靈活性。

單個通道輸入/輸出縮放以工程單位顯示信號值。

保持功能可輕松識別關鍵事件及其對應的信號值。

200字符方程字段（895/896M最大50字符）支持復雜的傳遞函數。

軟件仿真功能允許離線測試方程，以快速檢查各種條件下的輸出信號響應。

診斷LED提供超范圍輸入值的快速、可視指示。

脈寬調制能力允許用戶在用戶定義的載波頻率上改變輸出信號的脈寬。

固態繼電器提供開/關控制或帶故障安全/非故障安全能力的本地警報。

892M, 894M: DC Voltage/Current Output Math Module

Product short description:

2 or 4 input channels, 0 to 20mA DC, 0 to 10V DC (selectable ranges)

0 to 20mA DC, 0 to 10V DC (selectable ranges) output

10-36V DC power

Software configured, computes arithmetic operations, evaluates conditional and Boolean arguments, executes track & hold functions

892M, 894M Math Module with DC Voltage / Current Output Description

IntelliPack math modules perform complex mathematical computations and convert DC input signals to scaled DC or frequency outputs. They are ideal for isolating and interfacing analog signals to a PLC or controller as a voltage, current, or a pulsed input.

Typical applications include calculating a sum, delta’s, average, flow rate, volume, weight, power, and other scaled or computed variables.

Math modules are available with either DC voltage/current output or frequency/pulse-width modulated output. Each output (DC, frequency, and relay channels) is controlled by a unique, user defined equation.

The math/computation equations are entered into the IntelliPack configuration software in a free form format, the same as in most popular spreadsheet programs. A simulator screen provides instant feedback to test equations and see the output response before actual installation.

892M, 894M Math Module with DC Voltage / Current Output Features & Benefits

Universal DC analog I/O ranges provide flexibility for changing application requirements.

Individual channel input/output scaling displays signal values in engineering units.

Track and hold function enables easy identification of critical events and their corresponding signal values.

200-character equation fields (50-char. max. on 895/896M) support complex transfer functions.

Software simulation feature allows off-line testing of equations to quickly check output signal response for a variety of conditions.

Diagnostic LEDs provide quick, visual indication of an out-of-range input value.

Pulse-width modulation capability allows the user to vary the output signal’s pulse width on a user-defined carrier frequency.

Solid-state relays provide on/off control or local alarms with fail-safe/ non fail-safe capability
