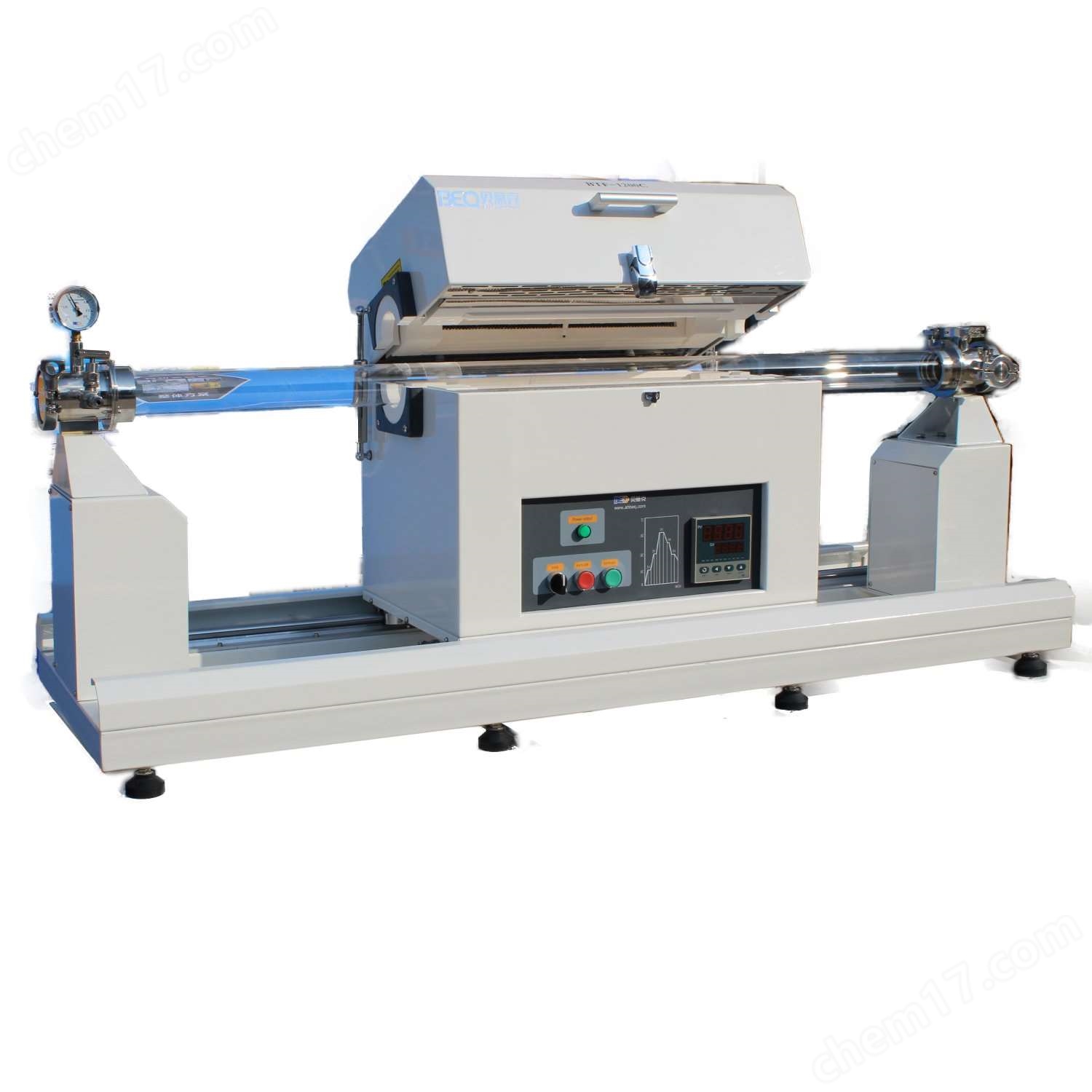

BTF-1200C-SL 安徽貝意克單溫區滑軌式快速升降溫爐
- 公司名稱 北京納飛科技有限公司
- 品牌
- 型號 BTF-1200C-SL
- 產地
- 廠商性質 經銷商
- 更新時間 2025/8/7 8:39:47
- 訪問次數 13
聯系方式：鄧先生 查看聯系方式
聯系我們時請說明是化工儀器網上看到的信息，謝謝!
主要特點Main features:
1) Can pull in the required high tem. to sample to get a rapid heating rate; also pull out the high tem. furnace and let the sample in the room tem. Environment to get a rapid cooling rate.
操作時可將實驗需要的恒定高溫直接推到樣品處，使樣品能得到一個快速的升溫速度，同樣也可將高溫的管式爐直接推離樣品處，使樣品直接暴露在室溫環境下，得到快速的降溫速率。
2) Used for graphene growing or CVD experiment with RTP requirement
應用于有快速升溫需要的石墨烯生長或CVD實驗。
技術參數Technical Parameters
Power 輸入電源 | Power rated: 3KW 額定功率：3KW |
Voltage 電壓 | Voltage rated: AC208-240V 50/60HZ 額定電壓： AC208-240V 50/60HZ |
Working Temperature 工作溫度 | Max. Temperature: 1200℃( 1 hr) **溫度：1200℃ (1小時) Continuous working temperature: ≤1100℃ 持續工作溫度：≤1100℃ Max. Heating/colling Rate: ≤20℃/S 升溫速率：≤20℃/秒 |
控溫方式 | PID automatic control and auto-tune function. 模糊PID控制和自整定調節 30 programmable segments for precise thermal processing. 智能化30段可編程控制 Built-in protection for the over-heated and broken thermocouple. 超溫和斷偶報警功能 |
Length of heating zone 加熱區長度 | 440mm |
Length of constant zone 恒溫區長度 | 200mm |
Heating Elements 加熱元件 | Resistance wire, Fe-Cr-Al Alloy doped by Mo 電阻絲（摻鉬鐵鉻鋁合金） |
Temperature Accuracy 控溫精度 | +/- 1℃ |
Processing tube 爐管 | Φ50/60/80/100*1400mm(optional) Φ50/60/80/100*1400mm(管徑可選) Two tube blocks are included for blocking heat radiation generated from tube center， must be fully inserted into the furnace chamber before heating in the correct position(quartz or ceramic optional). 兩個管堵阻擋管中心產生的熱輻射，必須在加熱前塞進爐膛的正確位置(石英或氧化鋁管堵可選) |
Dimensions 尺寸 | Furnace size :1500*380*620mm(L*W*H without tube & flange) 爐子尺寸：1500*380*620mm(長*寬*高 不含爐管和法蘭) |
Net Weight 凈重 | 130kg |
真空法蘭 | KF25 quick clamp flange 兩端為KF25快速卡箍法蘭 |
Vacuum Pressure 真空壓力 | 1pa can be achieved by mechanical pump 機械泵可達1pa 10^-4 pa can be reached by molecular pump 分子泵可達10^-4pa Please click the picture below to order vacuum parts 點擊下列圖片訂購真空部件 |
Warranty 質保 | One year limited warranty with lifetime support (Such consumable parts as tube, quartz block, and O-rings, etc. are NOT supported by the warranty) 一年質保終身支持（消耗品如爐管，石英管堵，O型圈等不在質保范圍內） |
Warning 注意事項 | Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating. 在使用過程中爐膛表面可能出現細小裂紋。這是正常情況，裂紋可以用氧化鋁涂層修復。 |
Compliance 認證 | CE Certified CE認證 The furnace is ready to pass TUV (UL61010) or CSA certification at extra cost. 付費可進行TUV(UL61010)或CSA認證 |
Operation instructions 操作指導 | Click to download the operating manual 點擊下載說明書
|
