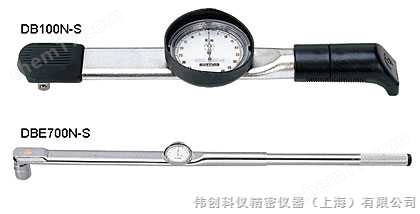

DB25N-S扭力扳手 供應DB25N-S扭力扳手日本TOHNICHI
具體成交價以合同協議為準
- 公司名稱 上海百雒精密儀器有限公司
- 品牌
- 型號 DB25N-S扭力扳手
- 產地
- 廠商性質 代理商
- 更新時間 2018/5/14 9:00:00
- 訪問次數 334
產品標簽
聯系我們時請說明是化工儀器網上看到的信息，謝謝!
東日扭力扳手,中村扳手,U-507音波式皮帶張力計,TETKO絲網張力計,BTG-2張力計,日本理研水平儀,TM-701高斯計,FMX-003靜電測試儀,各種進口推拉力計,7210-00溫濕度記錄儀,ECE磁性表座,得樂GS系列橡膠硬度計,
| Model | Torque Range | Hand force at Max.Torque | Effective Lgth. | Overall Lgth. | Square Drive | Weight approx. | ||||||||||||
| Min.-Max. | Graduation | |||||||||||||||||
| S.I. | Metric | American | S.I. | Metric | American | S.I. | Metric | American | N | lb. | mm | in. | mm | in. | mm | in. | kg | lb. |
| DB1.5N4-S | 15DB4-S | DB13I-2AS | N.m 0.2-1.5 | kgf.cm 2-15 | in.lbs 0-13 | N.m 0.02 | kgf.cm 0.2 | in.lbs 0.2 | 8.3 | 1 27/32 | 180 | 7 3/32 | 230 | 8 7/8 | 6.3 | 1/4 | 0.4 | 21/32 |
| DB3N4-S | 30DB4-S | DB26I-2AS | 0.3-3 | 3-30 | 0-26 | 0.05 | 0.5 | 0.5 | 16.7 | 3 41/64 | ||||||||
| DB6N4-S | 60DB4-S | DB40I-2AS | 0.6-6 | 6-60 | 0-40 | 0.1 | 1 | 0.5 | 33.3 | 5 41/64 | 9 1/16 | 7/8 | ||||||
| DB12N4-S | 120DB4-S | DB75I-2AS | 1-12 | 10-120 | 0-75 | 0.2 | 2 | 1 | 66.7 | 10 37/64 | ||||||||
| DB25N-S | 230DB3-S | DB150I-3AS | 3-25 | 30-230 | 0-150 | 0.5 | 5 | 2 | 125 | 19 3/64 | 200 | 7 7/8 | 245 | 9 21/32 | 9.53 | 3/8 | ||
| DB50N-S | 450DB3-S | DB300I-3AS | 5-50 | 50-450 | 0-300 | 5 | 208 | 31 25/32 | 240 | 9 7/16 | 320 | 12 19/32 | 0.6 | 1 11/32 | ||||
| - | - | DB600I-3AS | - | - | 0-600 | - | - | 10 | - | 49 15/64 | - | 12 3/16 | - | 15 3/4 | - | - | ||
| DB100N-S | 900DB3-S | DB600I-4AS | 10-100 | 100-900 | 1 | 10 | 323 | 49 15/64 | 310 | 400 | 12.7 | 1/2 | 0.7 | 1 9/16 | ||||
| - | - | DB25F-3AS | - | - | ft.lbs 0-25 | - | - | ft.lbs 0.5 | - | 31 25/32 | - | 9 7/16 | - | 12 19/32 | - | 3/8 | - | 1 11/32 |
| DB50F-3AS | 0-50 | 49 15/64 | 12 3/16 | 15 3/4 | 1 9/16 | |||||||||||||
| DB50F-4AS | 1/2 | |||||||||||||||||
| DB200N-S | 1800DB3-S | DB100F-4AS | 20-200 | 200-1800 | 0-100 | 2 | 20 | 1 | 488 | 74 13/32 | 410 | 16 1/8 | 500 | 19 11/16 | 12.7 | 1 | 1 7/32 | |
| DB280N-S | 2800DB3-S | - | 30-280 | kgf.m 3-28 | - | 5 | kgf.m 0.5 | - | 467 | - | 600 | - | 690 | 19.05 | - | 1.65 | - | |
| - | - | DB175F-4AS | - | - | 0-175 | - | - | 2 | - | 130 15/64 | - | 16 1/8 | - | 19 11/16 | - | 1/2 | - | 1 7/32 |
| DB420N-S | 4200DB2-S | DB250F-6AS | 40-420 | 4-42 | 0-250 | 5 | 0.5 | 5 | 525 | 126 63/64 | 800 | 23 5/8 | 890 | 27 5/32 | 19.05 | 3/4 | 2.5 | 3 41/64 |
| DBE560N-S | 5600DBE2-S | DB350F-6AS | 50-560 | 5-56 | 0-350 | 5 | 560 | 133 11/32 | 1000 | 31 1/2 | 1100 | 35 1/32 | 4 | 5 17/32 | ||||
| DBE700N-S | 7000DBE2-S | DB500F-6AS | 70-700 | 7-70 | 0-500 | 10 | 1 | 10 | 609 | 132 1/2 | 1150 | 45 9/32 | 1260 | 49 5/8 | 5.5 | 12 1/8 | ||
| DBE850N-S | 8500DBE2-S | - | 100-850 | 10-85 | - | - | 680 | - | 1250 | - | 1360 | 25.4 | 6.1 | - | ||||
| DBE1000N-S | 10000DBE2-S | DB800F-8AS | 100-1000 | 10-100 | 0-800 | 10 | 741 | 180 19/32 | 1350 | 53 5/32 | 1490 | 58 21/32 | 1 | 6.4 | 14 1/8 | |||
| DBE1400N-S | 14000DBE2-S | DB1000F-8AS | 200-1400 | 20-140 | 0-1000 | 20 | 2 | 10 | 875 | 190 15/32 | 1600 | 63 | 1740 | 68 1/2 | 8.6 | 18 31/32 | ||
| DBE2100N-S | 21000DBE2-S | DB1500F-8AS | 200-2100 | 20-210 | 0-1500 | 20 | 1050 | 228 9/16 | 2000 | 78 3/4 | 2140 | 84 1/4 | 12.8 | 28 7/32 | ||||
| DBE2800N-S | 28000DBE2-S | DB2000F-12AS | 300-2800 | 30-280 | 0-2000 | 50 | 5 | 20 | 1250 | 507 15/16 | 2240 | 47 1/4 | 2380 | 50 19/32 | 38.1 | 1 1/2 | 16.8 | 54 1/32 |
| DBR4500N-S | 45000DBR-S | DB3000F-12AS | 500-4500 | 50-450 | 0-3000 | 50 | 3750 | 609 33/64 | 1200 | 59 1/16 | 1285 | 62 13/32 | 24.5 | 56 7/32 | ||||
| DBR6000N-S | 60000DBR-S | - | 600-6000 | 60-600 | - | - | 4000 | - | 1500 | - | 1585 | - | 44.45 | - | 25.5 | - | ||
